Đầu Đo Điện Áp Cao DC Hioki P2000

Name: Đầu Đo Điện Áp Cao DC Hioki P2000
SKU: P2000
Availability: InStock

Giá (chưa VAT): Giá:2.990.000₫ ~~3.500.000₫~~

Giá (gồm VAT 8%): 3.229.200₫

Model / Mã đặt hàng: P2000

Hãng sản xuất: HIOKI

Xuất xứ: Nhật Bản

Bảo hành: 12 Tháng

0901.940.968 (Mr Lâm)

0909.346.736 (Mr Quân)

GIAO HÀNG NHANH CHÓNG
Chỉ trong vòng 24h

CHÍNH HÃNG 100%
Sản phẩm chính hãng

TIẾT KIỆM CHI PHÍ
Giá tốt nhất thị trường

HOTLINE
0901.940.968

MIỄN PHÍ VẬN CHUYỂN
Đơn hàng > 3 triệu

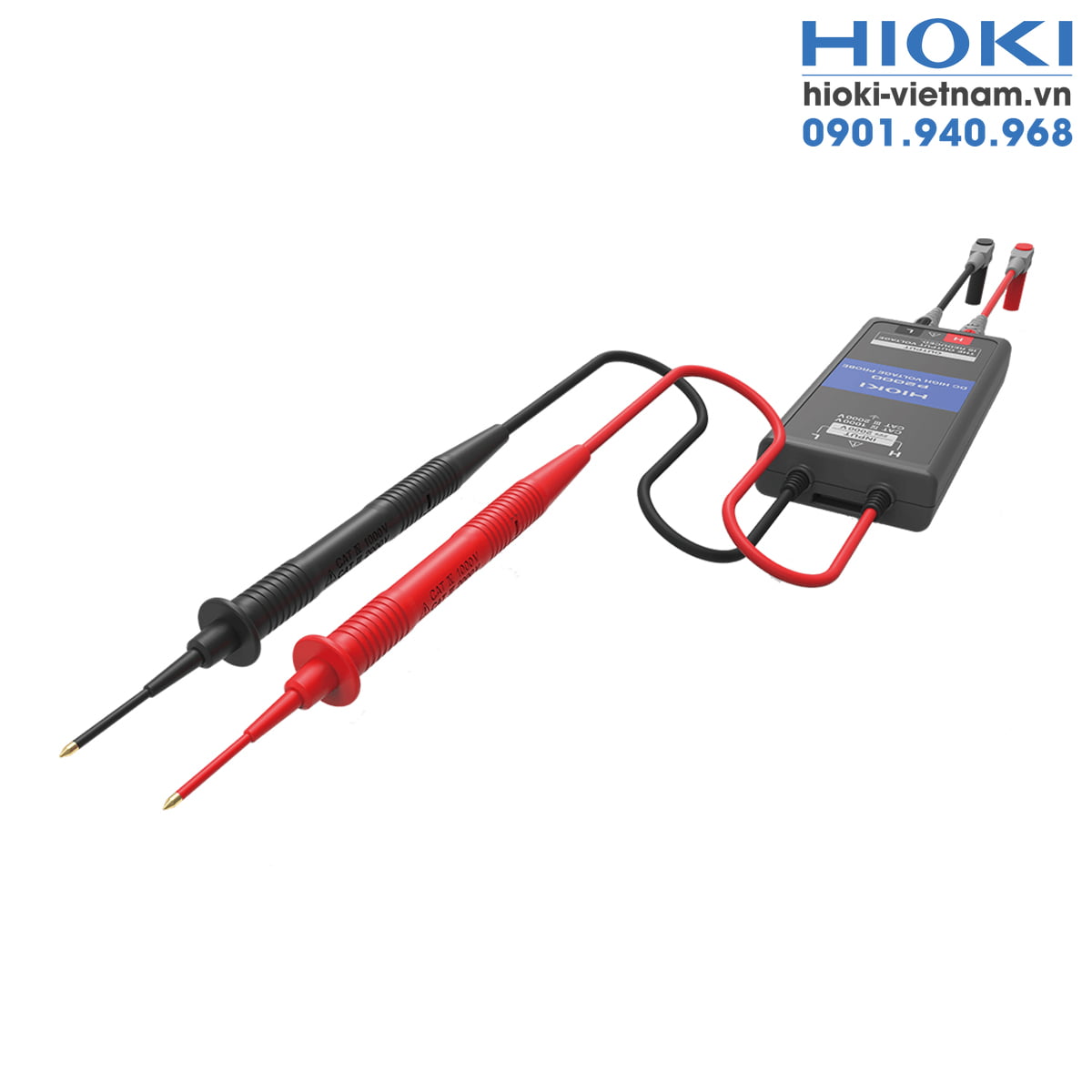

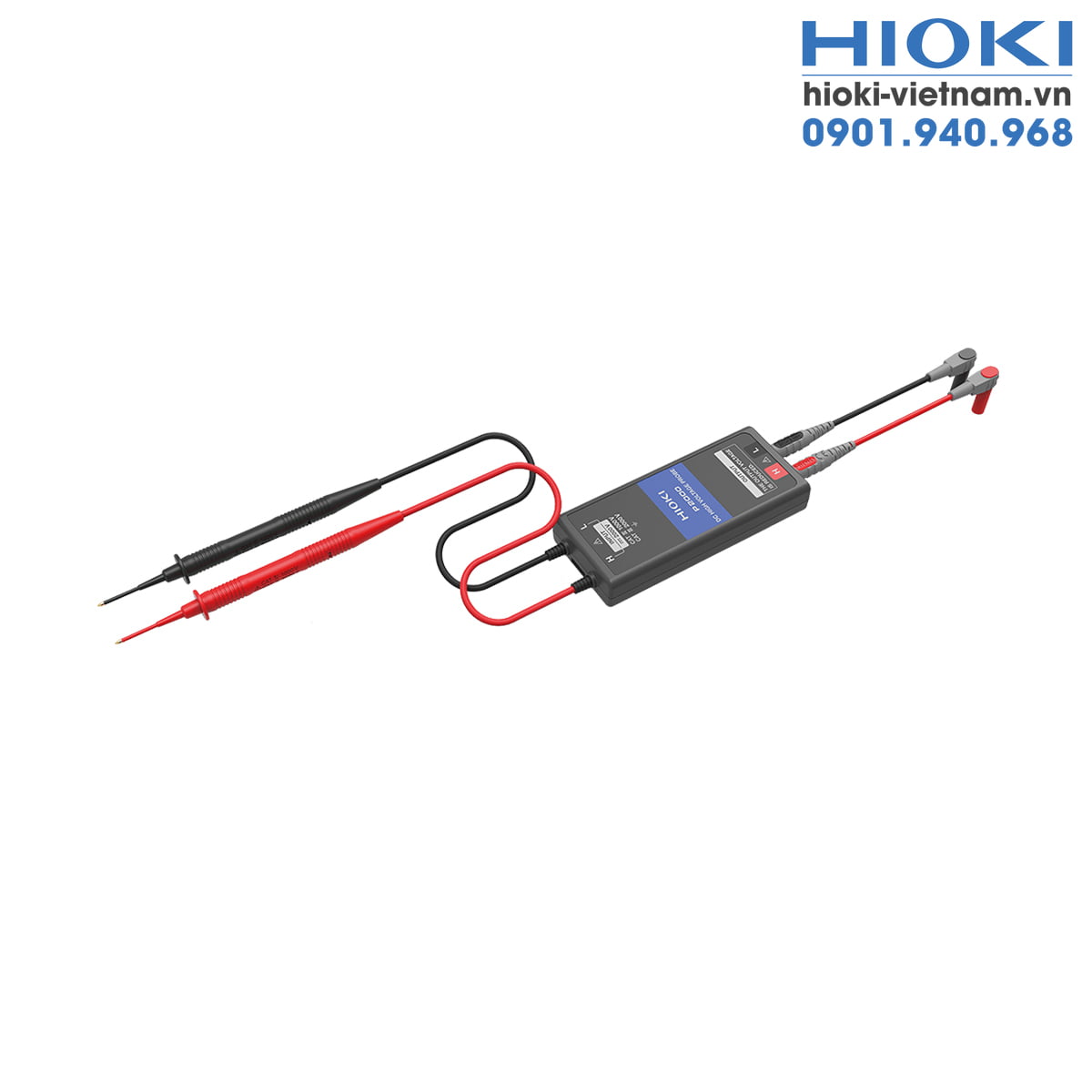

Đầu Đo Điện Áp Cao DC Hioki P2000 – DC HIGH VOLTAGE PROBE HIOKI P2000

Accuracy guaranteed: 1 year

Maximum input voltage (*1)	DC 2000 V
Maximum rated line-to-ground voltage	1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V
Input resistance	20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open)
Overload protection	2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L)
OUTPUT terminal	4 mm banana terminal
Operating temperature and humidity range	Temperature: -25°C to 65°C (-13°F to 149°F)Humidity: −25°C to 40°C (−13°F to 104°F): 80% RH or less (non-condensing) 40°C to 65°C (104°F to 149°F): Linearly reduces from 80% RH or less at 40°C (104°F) to 25% RH or less at 65°C (149°F) (non-condensing)
Storage temperature and humidity range	-30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing)
Standards	EN 61010
Included accessories P2000	Connection Cable Set L4943 ×1, Strap with buckle ×2, Strap ×1, Carrying Case C0205 ×1, Instruction Manual ×1, Operating Precautions ×1

Hioki P2000

Model	Combined accuracy
DT4261	Range 600.0 V: Combined accuracy ±0.5% rdg ±0.2 V Range 2000 V: Combined accuracy ±0.5% rdg ±5 V
CM4141-50 CM4371-50 CM4373-50 CM4375-50	Range 600.0 V: Combined accuracy ±1.0% rdg ±0.3 V Range 2000 V: Combined accuracy ±1.0% rdg ±3 V
DT4281 DT4282	Range 60.000 V: Combined accuracy ±0.8% rdg ±0.002 V (output rate 1/10) Range 600.00 V: Combined accuracy ±0.8% rdg ±0.02 V (output rate 1/10)
DT4252 DT4253	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.05 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.5 V (output rate 1/10)
DT4255 DT4256	Range 60.00 V: Combined accuracy ±1.2% rdg ±0.03 V (output rate 1/10) Range 600.0 V: Combined accuracy ±1.2% rdg ±0.3 V (output rate 1/10)
