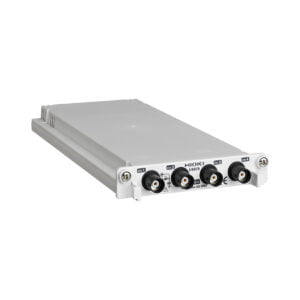

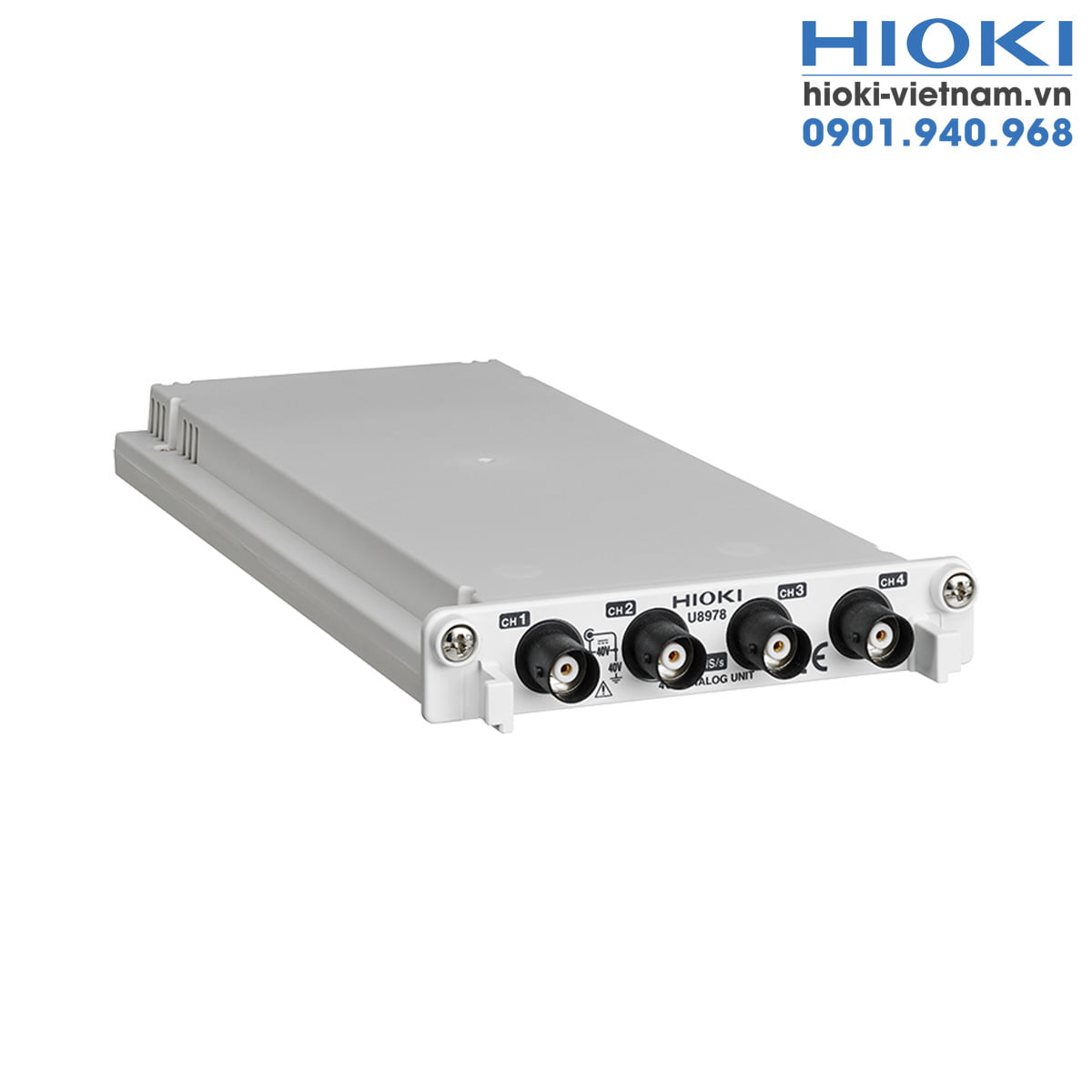

Ngõ Vào Tương Tự 4 Kênh Hioki U8978
4CH ANALOG UNIT HIOKI U8978
Isolated 4-channel input module to measure multiple points simultaneously
Basic specifications
Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year
| MEASUREMENT FUNCTIONS | Number of channels: 4, for voltage measurement | |||||
|---|---|---|---|---|---|---|
| INPUT TERMINALS | Isolated BNC terminal (Input impedance: 1 MΩ, Input capacitance: 30 pF) Max. rated voltage to earth: Direct input: 30 V AC, 60 V DC, When combined with the 9665: 300 V AC, DC (CAT II) (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) | |||||
| MEASUREMENT RANGE | 100, 200, 400 mV f.s., 1, 2, 4, 10, 20, 40 V f.s., 9 ranges Low-pass filter: 5/500/5 k/200 kHz | |||||
| MEASUREMENT RESOLUTION | 1/32000 of measurement range (using 16 bit A/D conversion) | |||||
| HIGHEST SAMPLING RATE HIOKI U8978 | 5 MS/s (4 channel simultaneous sampling) | |||||
| MEASUREMENT ACCURACY | ±0.3% f.s. (with filter 5 Hz, zero position accuracy included) | |||||
| FREQUENCY CHARACTERISTICS | DC to 2 MHz -3 dB | |||||
| INPUT COUPLING | DC/GND | |||||
| MAX. ALLOWABLE INPUT | 40 V DC (with direct input), 400 V DC (when using the 9665) | |||||
| DIMENSIONS AND MASS | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) | |||||
| ACCESSORIES | None | |||||
Hioki U8978
