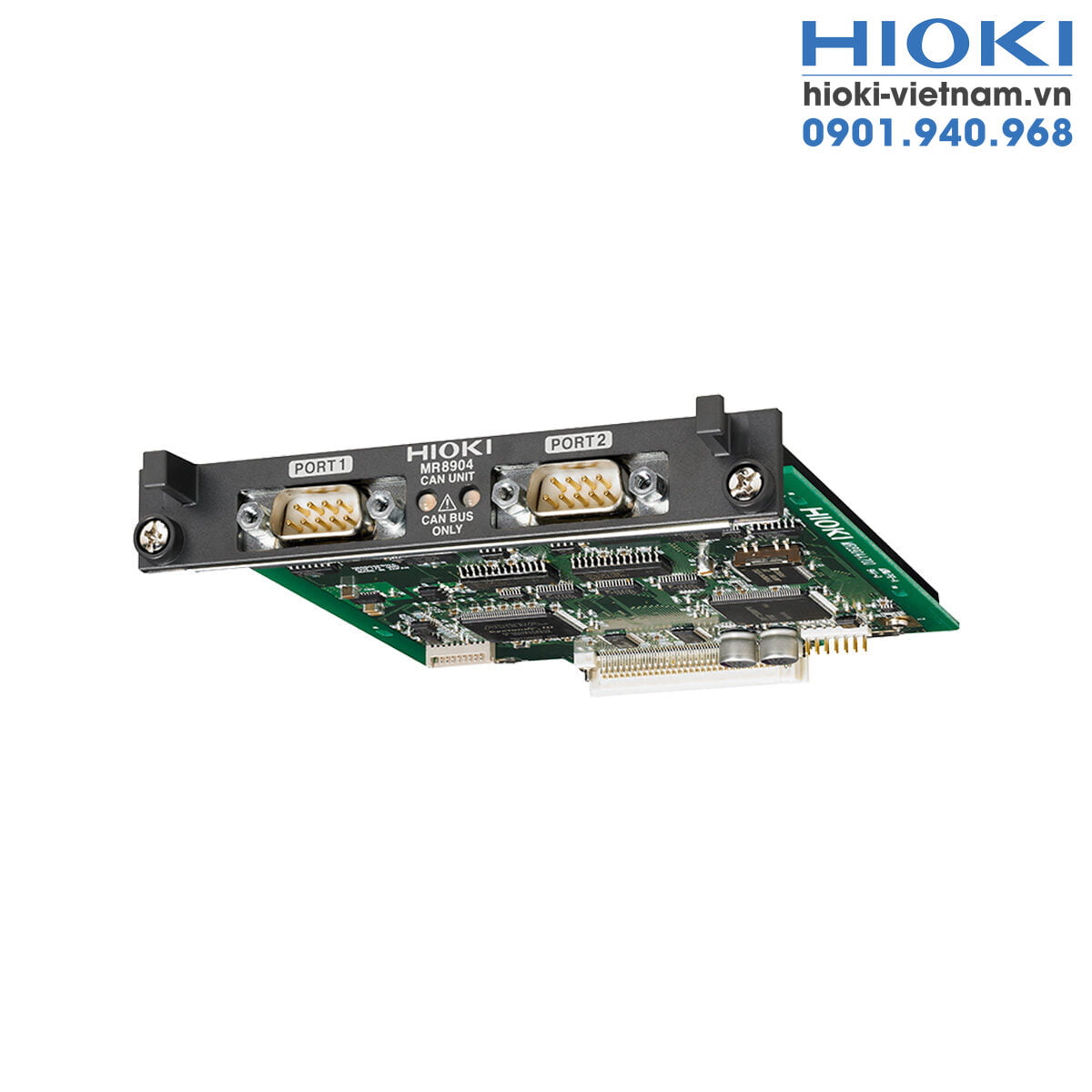

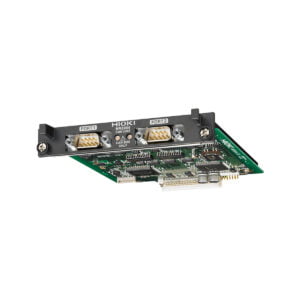

Ngõ Vào CAN Hioki MR8904

Name: Ngõ Vào CAN Hioki MR8904
SKU: MR8904
Availability: InStock

Giá: Giá:Liên hệ

Model / Mã đặt hàng: MR8904

Hãng sản xuất: HIOKI

Xuất xứ: Nhật Bản

Bảo hành: 12 Tháng

0901.940.968 (Mr Lâm)

0909.346.736 (Mr Quân)

GIAO HÀNG NHANH CHÓNG
Chỉ trong vòng 24h

CHÍNH HÃNG 100%
Sản phẩm chính hãng

TIẾT KIỆM CHI PHÍ
Giá tốt nhất thị trường

HOTLINE
0901.940.968

MIỄN PHÍ VẬN CHUYỂN
Đơn hàng > 3 triệu

Analyse CAN singal module for Memory Recorders

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

INPUT CAN PORT	Number of ports: 2, Connector: D-sub a male 9 pin ×2
STANDARDS	ISO 11898 CAN 2.0b, ISO 11898-1, ISO 11898-2, ISO 11898-3, SAE J2411
INTERFACE	Selectable: High-speed CAN, Low-speed CAN, or Single-wire CAN by port (with built-in corresponding transceiver)
TRANSMIT ACK	ON/OFF for transmitting a ACK for receiving CAN signal with the MR8904
TERMINATOR	ON/OFF via commands, 120 Ω ±10 Ω built-in resistance
BAUD RATE HIOKI MR8904	50 kbps to 1 Mbps at “High-speed”, 10 kbps to 125 kbps at “Low-speed”, 10 kbps to 83.3 kbps at “Single-wire”
ANALYZED SIGNAL OUTPUT CHANNEL	Up to 15 analog channels each equivalent to a 16-bit analog signal Up to 16 logic channels each equivalent to a 1-bit logic signal
SIGNAL FORM	1-bit signal: 1 channel of Logic, or 1 channel of Analog 1-bit to 16-bits signal: 1 channel of Analog 17-bits to 32-bits signal: 2 channels of Analog * Cannot handle signals over 32-bits
ID TRIGGER	Output “H” level pulse to designated logic channel when receiving set ID signal * Output pulse width: 50 μs below 5 ms/div time axis, 1 sampling time at more than 10 ms/div time axis
RESPONSE TIME	Within 200 μs after completely receiving CAN message
TRANSMIT CAN MESSAGE	Can transmit the setting CAN message to the CAN bus by a port
DIMENSIONS AND MASS	119.5 mm (4.70 in)W × 18.8 mm (0.74 in)H × 151.5mm (5.96 in)D, 185 g (6.5 oz)
ACCESSORIES	None
