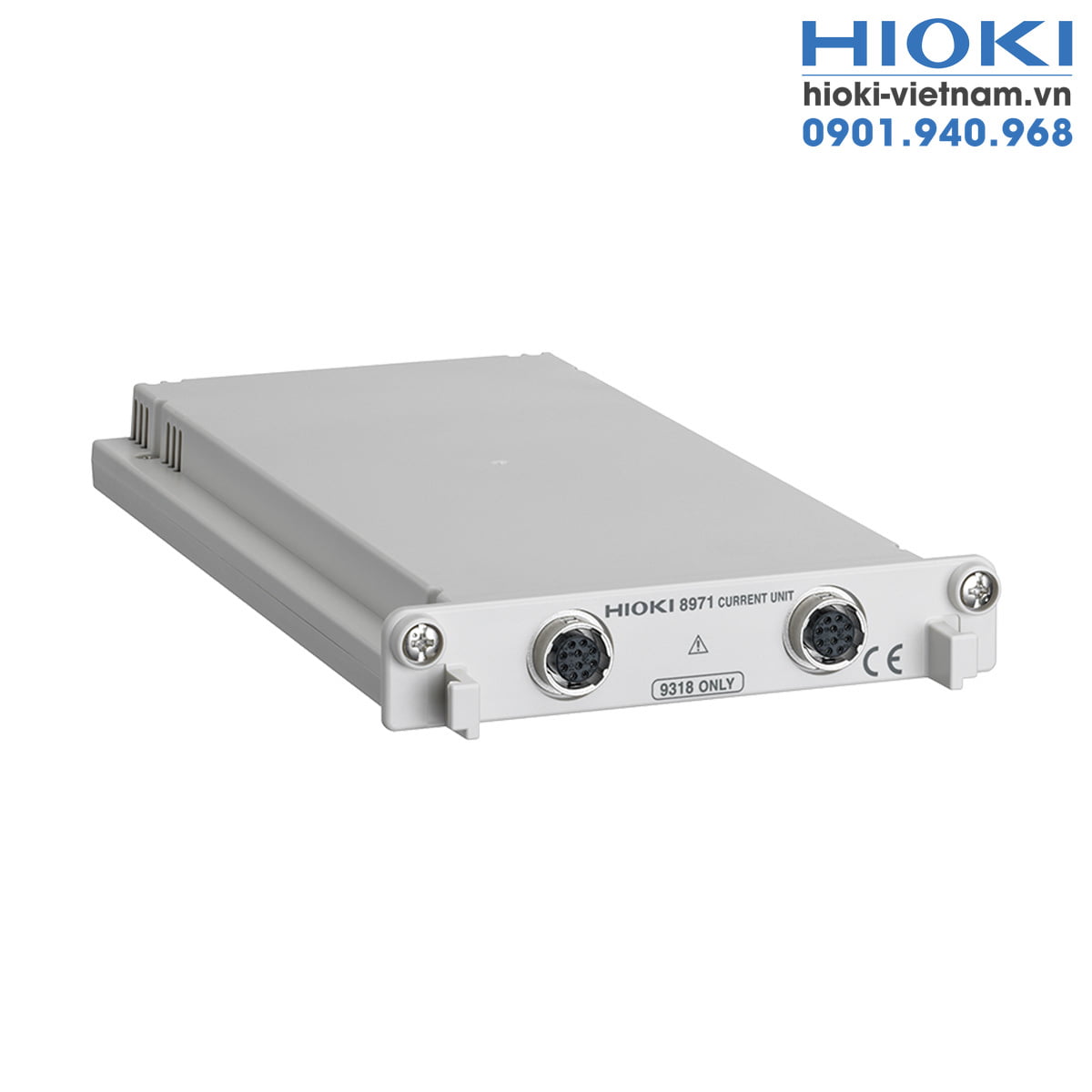

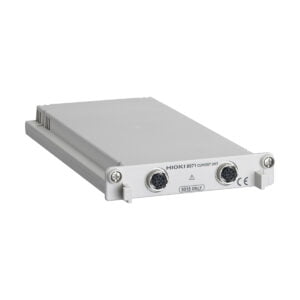

Ngõ Vào Dòng Điện Hioki 8971

Name: Ngõ Vào Dòng Điện Hioki 8971
SKU: 8971
Availability: InStock

Giá: Giá:Liên hệ

Model / Mã đặt hàng: 8971

Hãng sản xuất: HIOKI

Xuất xứ: Nhật Bản

Bảo hành: N/A

0901.940.968 (Mr Lâm)

0909.346.736 (Mr Quân)

GIAO HÀNG NHANH CHÓNG
Chỉ trong vòng 24h

CHÍNH HÃNG 100%
Sản phẩm chính hãng

TIẾT KIỆM CHI PHÍ
Giá tốt nhất thị trường

HOTLINE
0901.940.968

MIỄN PHÍ VẬN CHUYỂN
Đơn hàng > 3 triệu

URRENT UNIT HIOKI 8971

Dedicated Current Input Module Capable of Supplying Power to Current Sensors

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 1 year

MEASUREMENT FUNCTIONS	Number of channels: 2, Current measurement with optional current sensor, Maximum 4 units connectable to the 8847
INPUT CONNECTORS	Sensor connector (input impedance 1 MΩ, exclusive connector for current sensor via conversion cable the 9318, common ground with recorder)
COMPATIBLE CURRENT SENSORS	CT6863, CT6862, 9709, 9279, 9278, 9277, 9272-10 (To connect the 8971 via conversion cable the 9318)
MEASUREMENT RANGE	Using 9272-10 (20A), 9277: 100mA to 5A/div (f.s.=20div, 6 settings) Using CT6862: 200mA to 10A/div (f.s.=20div, 6 settings) Using 9272-10 (200A), 9278, CT6863: 1A to 50A/div (f.s.=20div, 6 settings) Using 9279, 9709: 2A to 100A/div (f.s.=20div, 6 settings)
ACCURACY HIOKI 8971	Using 9278, 9279: ±0.85% f.s. Using other sensor: ±0.65% f.s. RMS amplitude accuracy: ±1% f.s. (DC, 30Hz to 1kHz), ±3% f.s. (1kHz to 10kHz) RMS response time: 100ms (rise time from 0 to 90% of full scale), Crest factor: 2 Frequency characteristics: DC to 100kHz, ±3dB (with AC coupling: 7Hz to 100kHz)
MEASUREMENT RESOLUTION	1/100 of range
HIGHEST SAMPLING RATE	1 MS/s (simultaneous sampling across 2 channels)
OTHER FUNCTIONS	Input coupling: AC/DC/GND, Low-pass filter: 5, 50, 500, 5k, 50kHz, or OFF
DIMENSIONS AND MASS	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz)
ACCESSORIES	CONVERSION CABLE 9318 × 2 (To connect the current sensor to the 8971)
