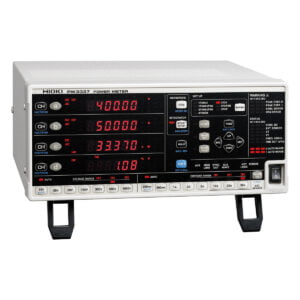

Thiết Bị Đo Công Suất Hioki PW3337

Name: Thiết Bị Đo Công Suất Hioki PW3337
SKU: PW3337
Availability: InStock

Giá: Giá:Liên hệ

Model / Mã đặt hàng: PW3337

Hãng sản xuất: HIOKI

Xuất xứ: Nhật Bản

Bảo hành: 12 Tháng

Mô tả nhanh Hioki PW3337:

PHẠM VI ĐO LƯỜNG: Dải điện áp: AC/DC 15 V đến 1000 V, 7 dải
Dải dòng điện: AC/DC 200 mA đến 50 A, 8 dải
Dải công suất: 3.0000 W đến 150.00 kW (Phụ thuộc vào sự kết hợp giữa dải điện áp và dòng điện)

Tư vấn mua hàng

0901.940.968 (Mr Lâm)

Tư vấn mua hàng

0909.346.736 (Mr Quân)

GIAO HÀNG NHANH CHÓNG
Chỉ trong vòng 24h

CHÍNH HÃNG 100%
Sản phẩm chính hãng

TIẾT KIỆM CHI PHÍ
Giá tốt nhất thị trường

HOTLINE
0901.940.968

MIỄN PHÍ VẬN CHUYỂN
Đơn hàng > 3 triệu

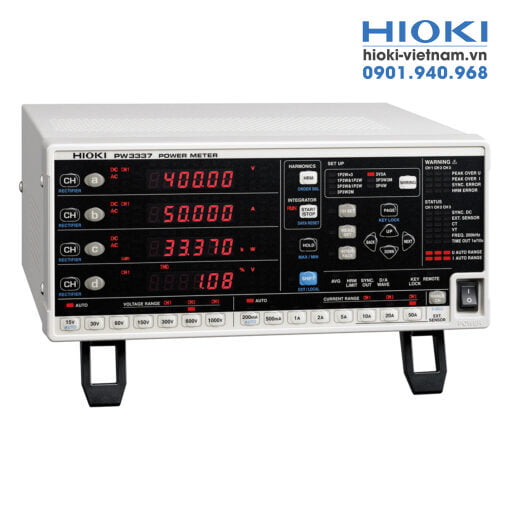

Thiết Bị Đo Công Suất Hioki PW3337

POWER METER HIOKI PW3337

3-Channel AC/DC Power Meter for Single-Phase to 3P4W Equipment such as Motors, Inverters, Power Conditioners, and Power Supplies

Model No. (Order Code)

PW3337	3ch
PW3337-01	3ch, built-in GP-IB
PW3337-02	3ch, built-in D/A output
PW3337-03	3ch, built-in GP-IB, D/A output

Basic specifications

Accuracy guaranteed: 1 year, Accuracy guarantee period after adjustment made by Hioki: 6 months

MEASUREMENT LINES	Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, 3-phase 4-wires (voltage / current measurement range set for each wiring mode)
MEASUREMENT ITEMS	Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
HARMONIC PARAMETERS	Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content % , Harmonic current content % , Harmonic active power content % (The following parameters can be downloaded as data during PC communication but not displayed: Harmonic voltage phase angle, Harmonic current phase angle, Harmonic voltage current phase difference)
MEASUREMENT RANGE	Voltage range: AC/DC 15 V to 1000 V, 7 ranges Current range: AC/DC 200 mA to 50 A, 8 ranges Power range: 3.0000 W to 150.00 kW (Depends on combination of voltage and current range)
INTEGRATION MEASUREMENT (INTEGRATION TIME UP TO 10,000 HOURS)	[Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value) [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
INPUT RESISTANCE (50/60 HZ)	[Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
BASIC ACCURACY (ACTIVE POWER)	±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input < 50%=””> ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
DISPLAY REFRESH RATE	5 times/s to 20 seconds (depends on average times settings)
FREQUENCY CHARACTERISTICS	DC, 0.1 Hz to 100 kHz
D/A OUTPUT (-02/-03 MODEL ONLY)	16 channels (selectable from following items), Level output DC ±2 V, Waveform output 1 V f.s. Level output, instantaneous waveform output (voltage, current, active power) Level output (apparent power, reactive power, power factor, or other) High-speed active power level output
FUNCTIONS	[Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, or other functions
INTERFACES	RS-232C / LAN standard, (-01/-03 model also includes GP-IB)
POWER SUPPLY	100 to 240 V AC, 50/60 Hz, 40 VA max.
DIMENSIONS AND MASS	305 mm (12.01 in) W × 132 mm (5.20 in) H × 256 mm (10.08 in) D, 5.6 kg (197.5 oz)
ACCESSORIES HIOKI PW3337	Instruction manual × 1, Measurement guide × 1, Power cord × 1
