Thiết Bị Đo Và Ghi Đa Năng Hioki MR8740T

Giá: Giá:Liên hệ

Model / Mã đặt hàng: MR8740T

Hãng sản xuất: HIOKI

Xuất xứ: Nhật Bản

Bảo hành: 12 Tháng

Mô tả nhanh Hioki MR8740T:

PHẠM VI ĐO: 100 mV to 400 V f.s., 12 ranges, resolution : 1/2000 of range (when using 8966)
4 V to 200 V f.s., 6 ranges, resolution : 1/32000 of range (when using U8975)
100 mV to 1000 V f.s., 5 ranges, resolution : 1/1000 000 of range (when using MR8990)
1 V, 10 V, 100 V f.s., 3 ranges, resolution : 1/1000 000 of range (when using U8991)
CHỨC NĂNG ĐO LƯỜNG: Memory (high-speed recording)

Tư vấn mua hàng

0901.940.968 (Mr Lâm)

Tư vấn mua hàng

0909.346.736 (Mr Quân)

GIAO HÀNG NHANH CHÓNG
Chỉ trong vòng 24h

CHÍNH HÃNG 100%
Sản phẩm chính hãng

TIẾT KIỆM CHI PHÍ
Giá tốt nhất thị trường

HOTLINE
0901.940.968

MIỄN PHÍ VẬN CHUYỂN
Đơn hàng > 3 triệu

Thiết Bị Đo Và Ghi Đa Năng Hioki MR8740T

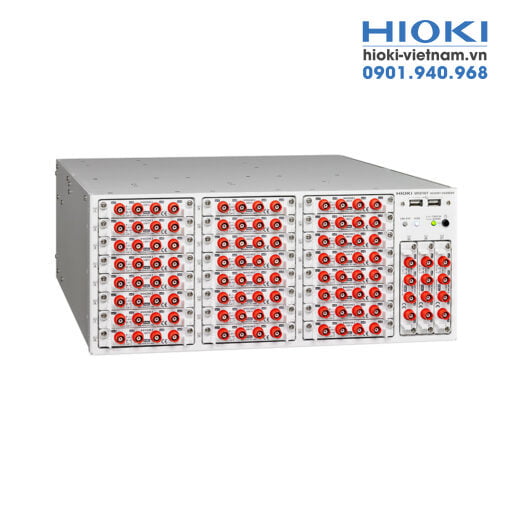

MEMORY HiCORDER HIOKI MR8740T

Max. 108 Analog Channels, Reduce Inspection Data Transfer Time to Zero

NUMBER OF INPUT UNITS	Max. 27 slots
NUMBER OF CHANNELS	[Using the U8975] Max. 108 ch analog, or 96 ch analog + 48 ch logic (when used in combination with U8975 + 8973) [Using the 8966] Max. 54 ch analog, or 48 ch analog + 48 ch logic (when used in combination with 8966 + 8973) Logic unit 8973 is limited to slots 25 to 27, up to 3 units. Analog unit channels are isolated from each other and from chassis. Logic unit channels share a common GND with chassis.
MEASUREMENT RANGES	100 mV to 400 V f.s., 12 ranges, resolution : 1/2000 of range (when using 8966) 4 V to 200 V f.s., 6 ranges, resolution : 1/32000 of range (when using U8975) 100 mV to 1000 V f.s., 5 ranges, resolution : 1/1000 000 of range (when using MR8990) 1 V, 10 V, 100 V f.s., 3 ranges, resolution : 1/1000 000 of range (when using U8991)
MAX. ALLOWABLE INPUT	400 V DC (when using 8966; upper limit voltage that can be applied between input terminals without damage)
MAX. RATED VOLTAGE TO EARTH	300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage)
FREQUENCY CHARACTERISTICS	DC to 5 MHz (-3 dB, when using 8966)
MAX. SAMPLING SPEED	20 MS/s, all ch simultaneous, external sampling: 10 MS/s
MEASUREMENT FUNCTIONS	Memory (high-speed recording)
MEMORY CAPACITY	Total of 1 G Word installed, 16 MW/ch (when using 8966), 8 MW/ch (when using U8975 or MR8990), 4 MW/ch (when using U8991)
INTERNAL STORAGE	SSD 480 GB
REMOVABLE STORAGE	USB memory stick ×8
MONITOR OUTPUT	VGA, HDMI, Display Port, Recommended resolution 1920 × 1080 dot or more
EXTERNAL INTERFACES	[LAN] 1000 BASE-T, 100 BASE-TX, 10 BASE-TX (2 port) (DHCP and DNS support, FTP server/cliant, HTTP server) [USB] USB 3.0 Series A receptacle × 4, USB 2.0 ×4
POWER SUPPLY	100 to 240 V AC, 50/60 Hz (400 VA max.)
DIMENSIONS AND MASS	426 mm (16.77 in)W × 177 mm (6.97 in)H × 505 mm (19.88 in)D, 14.0 kg (493.8 oz) (main unit only)
ACCESSORIES HIOKI MR8740T	Power cord ×1,Quick Start Manual (booklet) ×1, Instruction Manual (detailed edition) (CD-R) ×1, application disk (CD-R) ×1, blank panel (blank slot only), rack installation hardware
